视频车组装教程

【奇果派】远程视频遥控小车安装教程

Step 1: Download and install the APP

At present, only the Android version of the APP has been released

Step 2: Connect your phone to the camera hotspot

The camera will provide a WiFi hotspot with a prefix called IPC

After connecting to the hotspot, please wait a moment and the system will prompt you. Please confirm to keep connected

Step 3: Configure the camera

The following picture is the camera configuration interface, which will search for the nearest wifi with the strongest signal, please select the wifi that the camera wants to connect to, and enter the password in the pop-up window

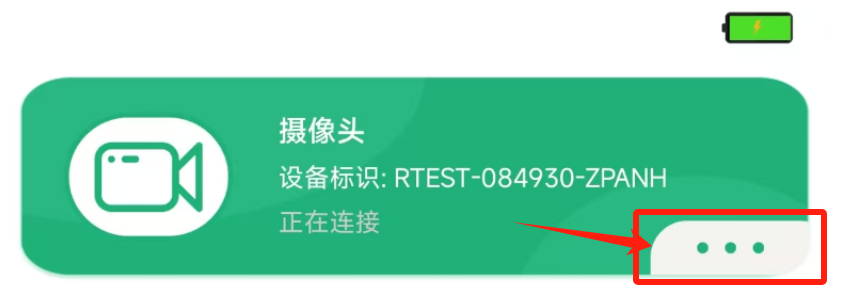

If the camera is successfully connected, there will be a pop-up prompt, at this time, you can return to the home page and wait for the camera to be networked;

At this time, the camera will turn off the hotspot, and the phone will automatically switch back to your usual WiFi;

This process takes about 30 seconds, if the homepage status shows that it is not connected, you can restart the App and try again;

Step 4: Use the camera (skippable)

Tip: The camera and the app can be on diffrent network

① Listen: The camera will play your speech ；
② Microphone: Listen to the sound source of the camera;
③ Photograph: Click to take a photo once and save it to the mobile phone album;
④ Video: Click to start recording, click to end recording again, and save it to the mobile phone album;
⑥ Switching definition: default HD, if the network delay is serious, you can switch to SD;

Step 5: Reset the camera (reset if something goes wrong)

If the configuration is wrong or unsuccessful many times, you can reset the camera and reopen the app for configuration

Press and release for 5 seconds when powered on, it will reset and clear the configuration after resetting, please reconfigure the camera from step 2.

Step 6: Configure remote control car

After configuring the camera, go back to the home page and click on the remote control

Make sure that the Bluetooth of the mobile phone has been turned on, and it will pop up as shown in the following figure (If not found, you can close the app and try opening it again)
